Lomanco 69317 Motor Attic Fan Ventilator - Compatible with Broan Models 341, 355, 358 & Other Attic Fans - Replacement Part for Home Ventilation & Cooling System

Product Description

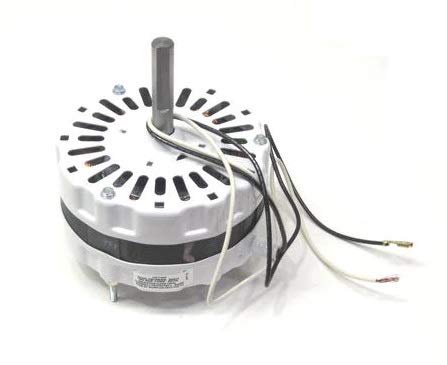

Packard Motor stock number 69317. This motor fits many attic fan ventilators. Motor Specifications:5" diameter x 2-3/4" think Shaft diameter is 1/2" x 2 5/8" long Motor measures 5 1/4" from the back of the motor to the end of the shaft 120 volt 2 wire Single speed motor 1100 RPM's 4.3 amps - Safe Amp Range within which the Motor Can Operate in the Application is 3.3 - 4.75 1/10th HP Rotation is clockwise viewing shaft end Mounts either as a belly band strap around the motor or with 3 studs out of the back of the motor spaced 4" apart triangularly This motor can handle a fan blade that is 12" & 14" in diameter, with 5 paddle 12" or 4 paddle 14". This motor is painted white. This motor replaces most but not all white painted motors be sure to check the specs. This motor replaces motors manufactured by Lomanco and others. Will also replace part number F0516b2516 Broan
